Product Details
Place of Origin: China
Brand Name: Senyilu
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month
Features: |
Uniform Overlay Thickness |
Name: |
CCO Chute Wear Plate Liner |
Base Plate: |
Q235/Q345 |
Thickness: |
6+4, 6+5, 6+6, 6+8, Etc |
Material: |
Chromium Carbide Alloy |
Size: |
Customized Size |
Hardness: |
HRC58-65 |
Application: |
Mining, Cement, Power, Etc |
Features: |
Uniform Overlay Thickness |
Name: |
CCO Chute Wear Plate Liner |
Base Plate: |
Q235/Q345 |
Thickness: |
6+4, 6+5, 6+6, 6+8, Etc |
Material: |
Chromium Carbide Alloy |
Size: |
Customized Size |
Hardness: |
HRC58-65 |
Application: |
Mining, Cement, Power, Etc |
Specifications

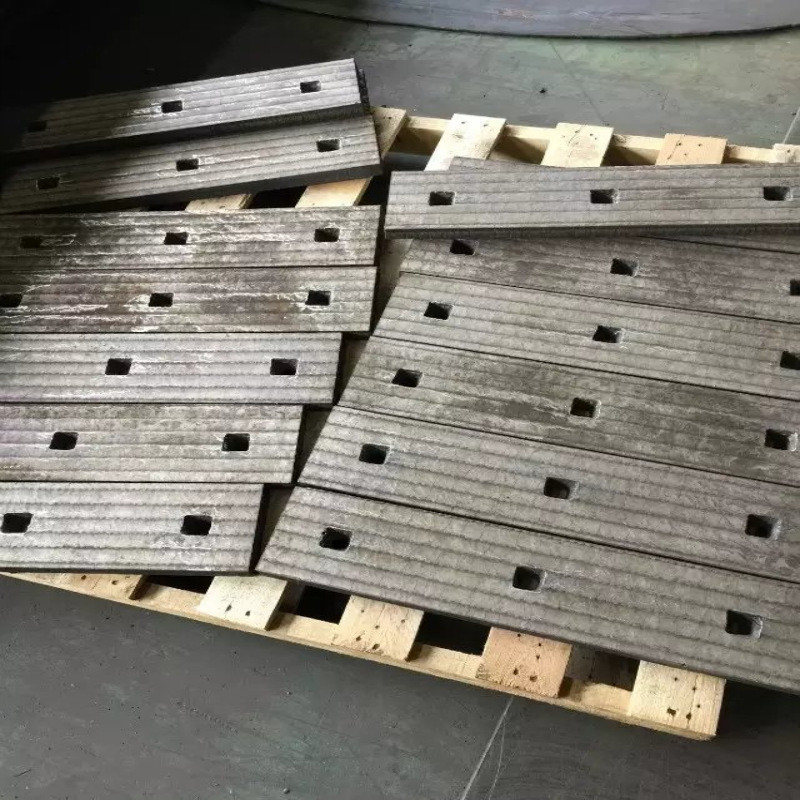

| Product Name | CCO chute fabricated wear plate liner |
| Base Metal | Q235/Q345 or other medium or low carbon steel or stainless steel |
| Surfacing Overlay | High chromium high carbide |
| Chemical Composition | C(%): 3.0-5.0 ,Cr(%): 25-40 |
| Metallographic Structure | The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
| Hardness | HRC58-65 |
| Wear Resistance | Our test shows that the wear resistance of CCO plate is 20 times higher than low carbon steel and 8 times than heat treated steel |
| Impact Resistance | CCO wear plates can withstand medium impact |
| Flatness Tolerance | Flatness tolerance is ±3mm/m |
| Thickness Tolerance | Uniform overlay thickness, tolerance within 0-0.5mm |
| Main Thickness Base metal + overlay |
3+3, 4+4, 5+5 |
| 6+4, 6+5, 6+6, 6+8 | |
| 8+4, 8+5, 8+6, 8+7, 8+8 | |
| 10+4, 10+5, 10+6, 10+7, 10+8, 10+9, 10+10, 10+20 | |
| 12+4, 12+5, 12+6, 12+7, 12+8, 12+10, 12+11, 12+12, 12+18, 12+20 | |
| 14+6, 14+8, 14+10 | |
| 16+6, 16+8, 16+10 | |
| 18+6, 18+8, 18+10 | |
| 20+5, 20+6, 20+8, 20+10, 30+10, 40+10, 20+20, 20+25 | |
| Customized thickness is acceptable | |
| Size | Width:Max 2400mm |
| Length:Max 4000mm | |
| Customized size is acceptable | |
| Place Of Origin | Tianjin, China |
| Package | Steel Pallet or Fumigation wooden case |
| Delivery Time | 1-10 days after order confirmed |
| Payment Term | EXW, FOB,CFR, CIF |
| Port Of Loading | Any ports of China |
| Other Wear Resistant Plate | 1. Impact Resistant Wear Plates |
| ---Independent R&D, with high wear and high impact resistance | |
| 2. Heat Resistant Wear Plates | |
| ---Independent R&D, with heat resistance maximum up to 900℃ | |
| 3. No Crack Wear Plates | |
| ---Hardness HRC: 50-55, mainly used in housing liner of steel mill, domestic unique product | |
| 4. Special Chemical Elements Wear Plates | |
| ---Customized, Chemical elements: Mo, Nb, Ni, W, V, etc. |
Typical Applications
CCO plate is widely used in the mining, power plant, port, cement, steel plant, glass, waste handling, glass, dredging, pulp and paper industries. Some applications are as below:
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer for steel plates, and our company also is a very professional and technical foreign trade company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q2: What are your main products?
A2: Our main products are chromium carbide overlay wear plates, also known as CCO wear plates, bimetallic wear plates, hardfacing wear plates, cladding wear plates, and composite wear plates.
Q3: Can you provide samples?
A3: Yes, we can provide samples for customers to do tests, please contact us to get more details.
Q4: What's your payment term?
A4: This term can be negotiated. We accept TT and LC payments.
Q5: Will you delivery the goods on time?
A5: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.
Q6: What's your production capacity?
A6: 150,000 m2/year.
Q7: Do you accept the third party inspection?
A7: Yes absolutely we accept.
