Product Details
Place of Origin: China
Brand Name: Senyilu
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month

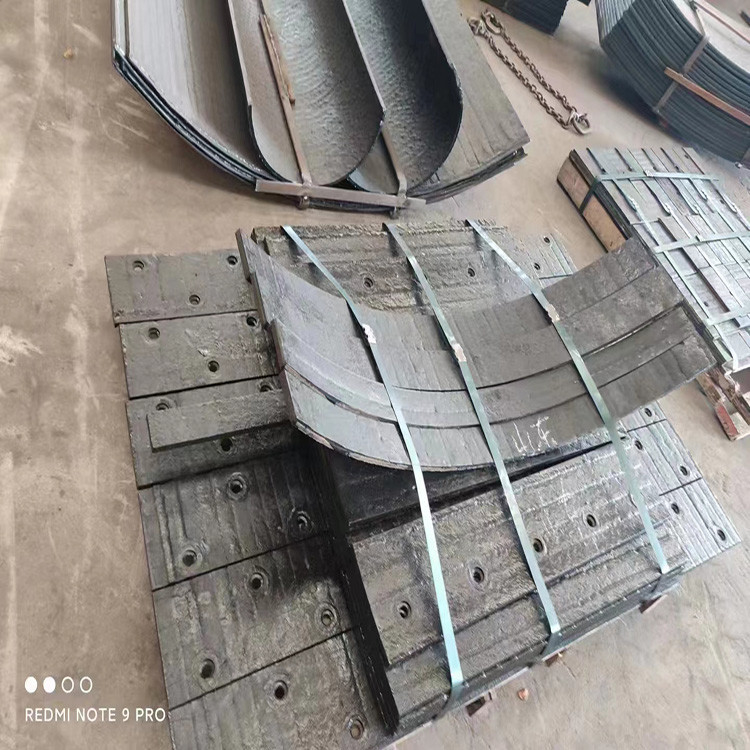

Name: |
CCO Wear Plate Liner |
Base Plate: |
Q235B, All Weldable Steels, Mostly Structural Steels. |
Surface Treatment: |
Hardfacing Clading Coated |
Thickness: |
8+6, 8+8, 10+4, 10+6, 10+8, 10+10, Etc |
Material: |
Chromium Carbide Alloy |
Size: |
Customized Size |
Feature: |
High Wear Resistance |
Application: |
Mining, Cement, Power, Etc |
Name: |
CCO Wear Plate Liner |
Base Plate: |
Q235B, All Weldable Steels, Mostly Structural Steels. |
Surface Treatment: |
Hardfacing Clading Coated |
Thickness: |
8+6, 8+8, 10+4, 10+6, 10+8, 10+10, Etc |
Material: |
Chromium Carbide Alloy |
Size: |
Customized Size |
Feature: |
High Wear Resistance |
Application: |
Mining, Cement, Power, Etc |
Typical Applications
CCO plate is widely used in the mining, power plant, port, cement, steel plant, glass, waste handling, glass, dredging, pulp and paper industries. Some applications are as below:
Specifications
| Product Name | Chromium carbide wear resistant plate liner |
| Material | High chromium carbide overlay wear plate |
| Thickness | 4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10, etc. or as customized |
| Weldable Thickness | 3-20mm |
| Hardness | Wear deposite 3mm: HRC 52-58, 4mm: HRC 56-60 ,5mm: HRC 58-62, 6mm: HRC 58-62, 8mm: HRC 58-62, 10mm: HRC 60-62, 12mm: HRC 60-63 1st layer :52-58 HRC, 2nd layer: 58-62 HRC, 3rd layer : 62 HRC |
| Surface Treatment | Hardfacing clading coated. |
| Technique | Advanced automatic self-shilded open arc welding |
| Chemical Composition | Take 12mm wear deposite for example: |
| C : 4.3-4.8% Cr : 23-30% Mn : 0.8-1.1% Mo: 0.08-0.18 Ni:0.08-0.15 | |
| Other Metal elements : Micro | |
| Base Plate | Q235B, All weldable steels, mostly structural steels. |
| Feature | High wear resistance |
| 12-20 times higher than common plate | |
| 5-10 times than low alloy steel plate | |
| 2-3 times than high chromium cast iron plate |
Our Advantages
- Extend service l i fe and improve efficiency of the equipment.
- Reduce maintenance cost and time.
- Reduce working intensity of service department
- Reduce overall cost.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer for steel plates, and our company also is a very professional and technical foreign trade company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q2: What are your main products?
A2: Our main products are chromium carbide overlay wear plates, also known as CCO wear plates, bimetallic wear plates, hardfacing wear plates, cladding wear plates, and composite wear plates.
Q3: Can you provide samples?
A3: Yes, we can provide samples for customers to do tests, please contact us to get more details.
Q4: What's your payment term?
A4: This term can be negotiated. We accept TT and LC payments.
Q5: Will you delivery the goods on time?
A5: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.
Q6: What's your production capacity?
A6: 150,000 m2/year.
Q7: Do you accept the third party inspection?
A7: Yes absolutely we accept.
