Product Details
Place of Origin: China
Brand Name: Senyilu
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month
Features: |
Wear Resistant |
Name: |
Wear Resistant Liner |
Base Plate: |
Q235/Q345 |
Thickness: |
6+4, 6+5, 6+6, 6+8, Etc |
Material: |
Chromium Carbide Alloy |
Size: |
Customized Size |
Hardness: |
HRC58-65 |
Application: |
Mining,Steel,Cement,Power,Port,etc. |
Features: |
Wear Resistant |
Name: |
Wear Resistant Liner |
Base Plate: |
Q235/Q345 |
Thickness: |
6+4, 6+5, 6+6, 6+8, Etc |
Material: |
Chromium Carbide Alloy |
Size: |
Customized Size |
Hardness: |
HRC58-65 |
Application: |
Mining,Steel,Cement,Power,Port,etc. |
Specifications

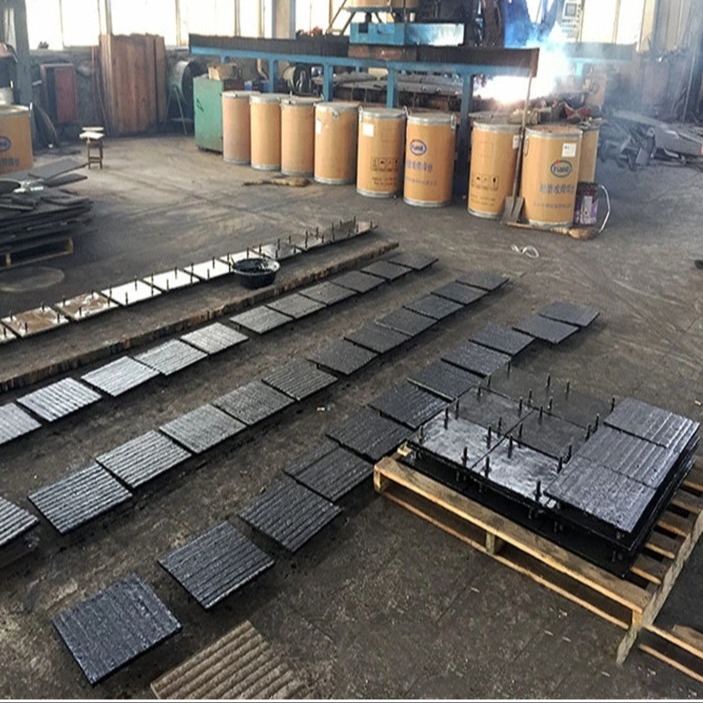

| Product Name | CCO Wear Resistant Steel Plates Grab Bucket Wear Resistant Liner |
| Base Plate | Q235/Q345 |
| Hardfacing layer | High chromium high carbide overlay |
| Chemical Composition | C(%): 3.0-5.0 ,Cr(%): 25-40 |
| Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
| Hardness | HRC58-65 |
| Surface Treatment | Hardfacing,clading,coated |
| Technique | Hardfacing,open arc welding,submerged arc welding |
| Wear Resistance | High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel |
| Impact Resistance | Medium |
| Flatness tolerance | ±3mm/m |
| Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5mm |
| Main Thicknesses | 3+3,4+4, 5+5 |
| 6+4,6+5,6+6,6+8 | |
| 8+4,8+5,8+6,8+7,8+8 | |
| 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 | |
| 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 | |
| 14+6,14+8,14+10,16+6,16+8,16+10 | |
| 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 | |
| Customized. | |
| Plate Size | Open arc welding wear plate:1400*3400mm |
| Submerged arc welding wear plate:1400*3000mm, | |
| 1400*3500mm, 2100*3500mm. | |
| Customized | |
| Place of Origin | China |
| Application | Mining,Steel,Cement,Power,Port,etc. |
Typical Applications
CCO plate is widely used in the mining, power plant, port, cement, steel plant, glass, waste handling, glass, dredging, pulp and paper industries. Some applications are as below:
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer for steel plates, and our company also is a very professional and technical foreign trade company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q2: What are your main products?
A2: Our main products are chromium carbide overlay wear plates, also known as CCO wear plates, bimetallic wear plates, hardfacing wear plates, cladding wear plates, and composite wear plates.
Q3: Can you provide samples?
A3: Yes, we can provide samples for customers to do tests, please contact us to get more details.
Q4: What's your payment term?
A4: This term can be negotiated. We accept TT and LC payments.
Q5: Will you delivery the goods on time?
A5: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.
Q6: What's your production capacity?
A6: 150,000 m2/year.
Q7: Do you accept the third party inspection?
A7: Yes absolutely we accept.
